Highest Power Solar Panel 950W China Factory Stock Cheap Price Wholesale MSD950WMWM

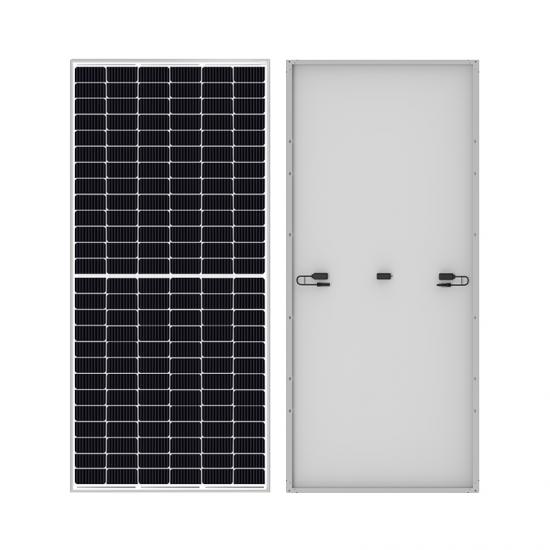

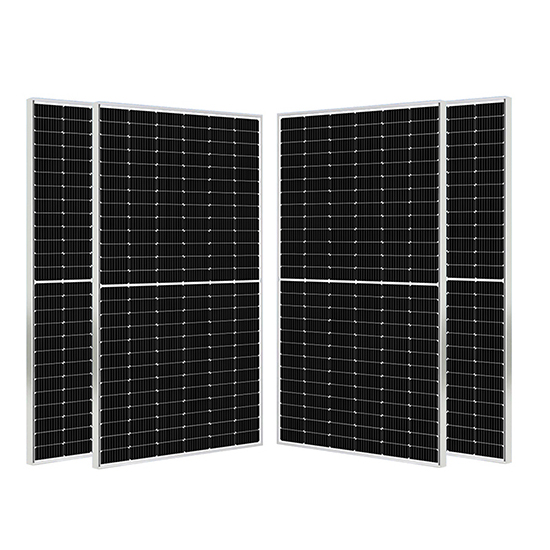

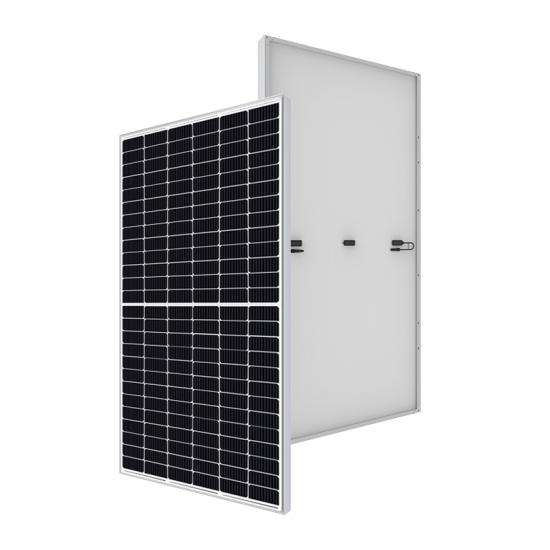

Highest power solar panels

Factory Model:  MSD950WM
Technology Applied:  MBB, PERC, Half-cut
PV Cells on Panel:  Mono M10, 6 x 26
Cell Efficiency:  21.5%
Power Max [Pmax]:  600W
Open Circuit Voltage:  54.1V
Short Circuit Current:  14.1A
Panel Dimension:  2464x1134x35mm
Net Weight:  30kg
Bundle Package:  31pcs per pallet
40ft Container Load:  590 pcs


Descriptions
Datasheets
Downloads

Highest power solar panels are packaged with half cut of MBB M10/182mm PERC solar cells, which have high power and high efficiency, and provide the most economical and effective solution for reducing the LCOE of any size PV system. These versatile panels are quality tested to ensure safety and longevity. Built durable for outdoor use, these panels are capable of withstanding heavy snow and strong wind loads.

Mono crystalline modules are based on Grade A solar cells which on average reach 20% and above efficiency. With no PID, a leading temperature coefficient and its high power density, it is ideal for increasing energy yields and making the most of available rooftop space, getting up to 20% more power output.
The strengthened aluminum frame has pre-punched holes for fastening to any mounting support. The male and female connectors leads are compatible with any MC4 wiring connectors, allowing for a quick and simple connection.






JM Solar Pro is a tier 1 factory level supplier in China solar industry. Its renowned large-scale manufacturing base is located in Jiangmen China. 950W highest power solar panels from China factory JM Solar; as a highest power solar panel manufacturer in China, we sell highest PV panels stock at very cheap wholesaling price. .She adopted full automation production lines in fabricating solar panels. Quality is consistently maintained and emphasized as the top commitment as we dedicated to build long run reputation across the trade home and abroad.





[Reliable]

EL-tested solar modules; no hot-spot heating. Bypass diodes minimize power drop caused by shade. TPT back sheet can keep smooth performance over a long period of time.


[Durable]

Positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa). The corrosion-resistant aluminum frame can extended outdoor use; the panels can last for decades.


[Versatile]

Can be used for many different applications. Ground-mount compatible with on-grid and off-grid inverters.


[Installation Ready]

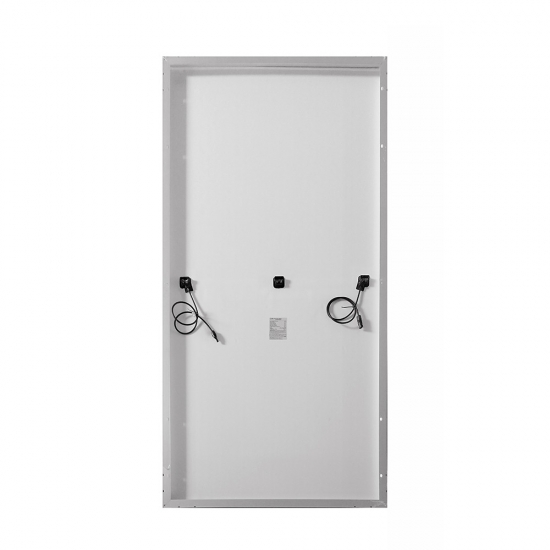

Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. It is compatible with different mounting systems made by SolarPro or other brands.



Technical Features

● 10 years with 90% output, 25 years with 80% output
● 100% PID Free
● High cell efficiency with long term output stability and reliability
● Rigidly tested solar modules; no hot-spot heating guaranteed
● Rigorous quality control to meet highest international standards
● Bypass diodes minimize power drop caused by shade
● Outstanding electrical performance under high temperature and low irradiance, cloudy weather conditions




600w_solar_panel_made_in_china_brand.jpgMBB_solar_panel_600W_catalogue.jpgpv SOLAR PANEL STRUCTURE COMPOSITION.jpgJM_SOLAR_panel_specification_600W.jpgsolar_panels_factory_PV_TOP_brand_made_in_China_JMSOLAR.jpgJMSOLAR_China_solar_panels_manufacturer_top_brand.jpgSolarpro_JMSOLAR_solar_panel_factory_Guangdong_china_guangzhou.jpg



Technical Specifications of Solar Panels Mono-Crystalline


Model

MSD600M156

Testing Standard

STC

(1000W/m2, 25℃, AM1.5)

NOCT

(800 W/m2, 20℃, AM1.5)

Maximum Power(Pmax)

600W

452W

Voltage at Maximum Power (Vmp)

45.53V

42.73V

Current at Maximum Power (Imp)

13.18A

10.58A

Open Circuit Voltage (Voc)

54.10V

50.6V

Short Circuit Current (Isc)

14.1A

11.2A

Module Efficiency (%)

21.50%

Power Tolerance

0 ~ +5W

Temperature of Coefficient of Isc

+0.046%℃

Temperature of Coefficient of Voc

-0.275%℃

Temperature of Coefficient of Pmax

-0.350%℃

Physic Data

Cell  Type

Mono-crystalline silicon 182x182mm (half cut)

Cell Number

6x26, 156

Panel Dimension

2464x1134x35mm

Panel Weight

30kg

Front Cover Glass Thickness

3.2mm  high transmittance ,low iron ,toughened glass

Frame

Anodized Aluminum Alloy

Junction Box

Protection Class IP68

Output Cable

 MC4 PV connector w/ male and female, cable length :280mm

Operation Conditions



Operation Temperature

-40 ~ +85℃

Max System Voltage

1500Vdc

Max Serial Fuse Limit

25A

NOCT

45±2℃

Fireproof Performance

Class C

Certification

Standards

IEC61215-1, IEC61215-2, IEC61730-1, IEC61730-2
ISO90012015,ISO45001:2018


JMSOLAR factory made-in-China PV solar pro panels.jpg


Main Specification Sheet for JM Solar Pro Series


Model

Pmax
(STC)

Voc

Isc

Dimension

Weight

Cells

Front+Back
material

Packing

40'HQ
Load

MSD600M156

600W

54.1 V

14.1 A

2464x1134x35mm

30kg

182 mono 6x26

Glass+EVA film+PET

31pcs/pallet

590 pcs

MSD540M144

540W

49.55 V

13.89 A

2279x1134x35mm

28.5kg

182 mono 6x24

Glass+EVA film+PET

31pcs/pallet

620 pcs

MSD500M132

500W

45.65 V

13.92 A

2094x1134x35mm

26.2kg

182 mono 6x22

Glass+EVA film+PET

31pcs/pallet

682 pcs

MSD450M120

450W

41.25 V

13.89 A

1909x1134x35mm

23.9kg

182 mono 6x20

Glass+EVA film+PET

31pcs/pallet

744 pcs

SP450M60

450W

41.04 V

13.95 A

1909x1134x35mm

22.9kg

182² mono 6x10

Glass+EVA film+PET

2 pcs/ctn

736 pcs

SP400M54

400W

37.02 V

13.78 A

1725x1134x35mm

21.3kg

182² mono 6x9

Glass+EVA film+PET

2 pcs/ctn

810 pcs

SP360M48

360W

41.04 V

11.16 A

1540x1134x35mm

18.8kg

182² mono 6x10

Glass+EVA film+PET

2 pcs/ctn

902 pcs

SP300M60

300W

41.04 V

9.3 A

1290x1134x35mm

14.3kg

182² mono 6x10

Glass+EVA film+PET

2 pcs/ctn

1088 pcs

SP240M32

240W

21.8 V

13.95 A

1530x760x35mm

14.3kg

182² mono 4x8

Glass+EVA film+PET

2 pcs/ctn

1356 pcs

SP200M32

200W

21.8 V

11.62 A

1290X760X30mm

10.3kg

182² mono 4x8

Glass+EVA film+PET

2 pcs/ctn

1836 pcs

SP160M32

160W

21.8 V

9.3 A

1040X760X30mm

8.3kg

182² mono 4x8

Glass+EVA film+PET

2 pcs/ctn

2280 pcs

SP120M32

120W

21.8 V

6.97 A

800x760x30mm

7.3kg

182² mono 4x8

Glass+EVA film+PET

2 pcs/ctn

2880 pcs

SP100M32

100W

21.8 V

5.81 A

680x760x30mm

6.3kg

182² mono 4x8

Glass+EVA film+PET

2 pcs/ctn

3366 pcs

SP080M32

80W

21.8 V

4.65 A

550x760x30mm

5.3kg

182² mono 4x8

Glass+EVA film+PET

2 pcs/ctn

4032 pcs

SP060M32

60W

21.8 V

3.49 A

430x760x30mm

4.3kg

182² mono 4x8

Glass+EVA film+PET

2 pcs/ctn

5340 pcs

SP050M32

50W

21.8 V

2.97 A

670x400x25mm

3.8kg

182² mono 4x8

Glass+EVA film+PET

2 pcs/ctn

6540 pcs

SP040M32

40W

21.8 V

2.39 A

570x400x25mm

2.8kg

182² mono 4x8

Glass+EVA film+PET

2 pcs/ctn

7730 pcs


Mono-Crystalline MBB Half Cut Solar Panels Dimensions / Sizes




Catalogue_450-600W_Solar_panel_JMSOLAR
